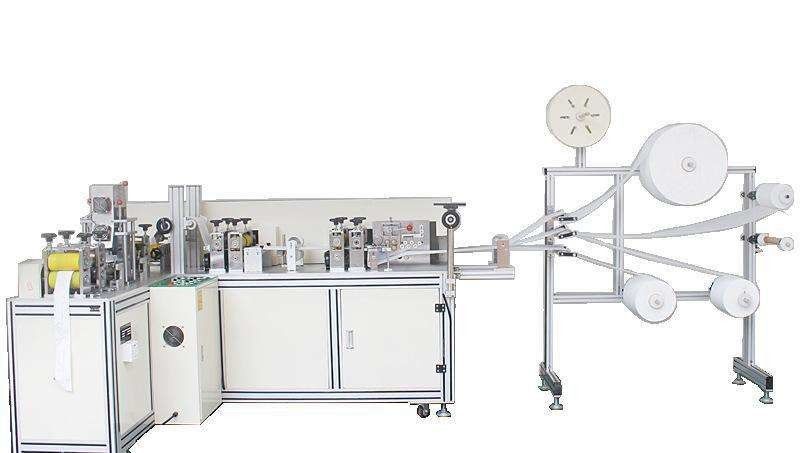

High Yielding 3 Layer Face Mask Machine / Face Mask Maker Machine
-
-
Large Image :
High Yielding 3 Layer Face Mask Machine / Face Mask Maker Machine
|
Product Details:
| Place of Origin: |
China |
| Certification: |
CE |
| Model Number: |
MM-L1 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
Negotiable |
| Price: |
Negotiable |
| Packaging Details: |
Standard Packing |
| Delivery Time: |
30 - 45 days |
| Payment Terms: |
L/C, T/T |
| Supply Ability: |
100 Set/Per Month |
|
Detailed Product Description
| Name: |
3 Layer Face Mask Machine |
Product Size: |
175*95mm |
| Feature: |
High Yielding |
Service: |
English Video Call Installation Training |
| Product Type: |
Face Mask Maker Machine |
Advantage: |
Automatic |
| High Light: |
face mask maker machine, face mask production line |
High Yielding 3 Layer Face Mask Machine / Face Mask Maker Machine
3 Layer Face Mask Machine Features:
1. Using aluminum alloy structure, beautiful and solid without rust.
2. Computer PLC programming control, high stability, low failure rate and low noise.
3. Adopt Taiwan imported servo motor and stepper motor drive, high precision.
4. Photoelectric detection of raw materials to avoid mistakes and reduce waste.
5. If necessary, one body can be connected to 2-3 inner ear straps or outer ear straps.
6. The machine adopts pulleys and fixed feet, which is convenient and fast to move, strong in fixation and does not shake.
7. This model is equipped with a new advanced conveyor belt, which automatically collects products with high accuracy.It does not need to be manually counted, just sorting and packaging.
3 Layer Face Mask Machine Basic Info. :
Power Input:220V / 50Hz
Product Size :175*95mm
Warranty :12 Months
Service : English Video Call Installation Training
Product Type : Mask, Mouth Cover
Usage : Hospital, Public
Weight :2300kg
Purpose: Making Disposable Face Mask
Driven Type : Electric
Air Pressure : 0.6MPa
3 Layer Face Mask Machine parameters :
| Control system power | 1 Phase 220V / 50HZ |
| Air Pressure | 0.6Mpa |
| Power supply | 3Phase 380V 50HZ |
| servo motor | Domestic quality |
| Control System | PLC |
| sensor | Omron, Seak |
| Pneumatic Components | SMC Yadek |
| Operation screen | 10 inch capacitive screen |
| Bearing | NSK |
| Lead screw | Hiwin |
| Security | Safety light grid |
| Equipment structure | 2 ply |
| equipment power | 8.5KW |
| equipment weight | about2.6T |
| Driven | Ordinary motor + servo |
| Number of applicable layers | 3-layer |
| Applicable materials | PP, non-woven fabric, synthetic fiber |
| Processing methods | Ultrasonic welding |
| Finished product specifications | 175*95mm |
Price Term
1. Above price is quoted based on FOB Shenzhen China
2. Payment term: 30% down payment, the balance paid before delivery
3. Delivery time: Within 25 workdays after received 50% down payment
4. COUNTRY OF ORIGIN: China
5. MARKING: Notice by buyer
6. PACKING: Wooden Pallet
3 Layer Face Mask Machine Details
